 LPG Series High-Speed Centrifugal Spray Dryer
>> Dimensions
>> Technical parameters
| Item/parameter/spec |
LPG |
| 5 |
25 |
50 |
100 |
150 |
200-2000 |
| Inlet temperature℃ |
140-350 automatically controlled |
| Outlet temperature℃ |
～80-90 |
| Max. Water evaporation capacitykg/h |
5 |
25 |
50 |
100 |
150 |
200-2000 |
| Centrifugal spraying nozzle transmission mode |
Compressed air transmission |
Mechanical transmission |
| Rotation speed(r.p.m) |
25000 |
18000 |
18000 |
18000 |
15000 |
8000-15000 |
| Spraying disc diameter(mm) |
50 |
100 |
120 |
140 |
150 |
180-340 |
| Heat supply |
Electricity |
Electricity +
steam |
Electricity + steam, fuel oil and gas |
Settled by users themselves |
| Max. Electric heating powerkw |
9 |
36 |
63 |
81 |
99 |
|
| Overall dimensions(m) |
1.8×0.93×2.2 |
3×2.7×4.26 |
3.7×3.2×5.1 |
4.6×4.2×6 |
5.5×4.5×7 |
depends on the concrete conditions |
| Dried powder collecting% |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |

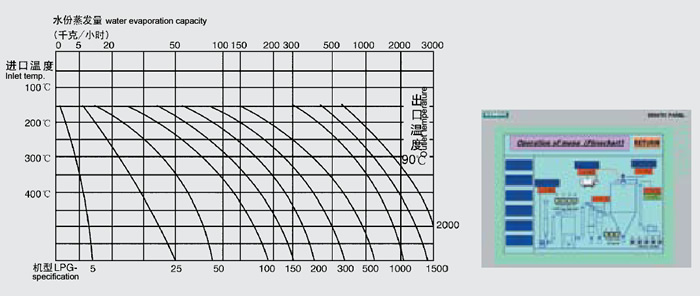

＊Note: for water evaporation capacity, material property, the inlet and outlet temperatures, please refer the following diagram for reference.
|
|
|
